Features:
--Capturing from 350K to 14M (4384x3288) pixel high quality still images
--Streaming real-time, ultra-fast, full-resolution live video on your PC screen
--High speed USB 2.0, compact design
--Fitting 4 mounting sizes: 23mm, 30mm, 30.5mm, and C-mount
--Advanced editing, processing, and measuring software
--Compatible with Windows XP/Vista/7 (32 & 64 bits)
--CE, UL, FC.. all certificate passed
Detail Specification:
BUDC-9380 Digital Camera, C Mount + Eyepiece Type

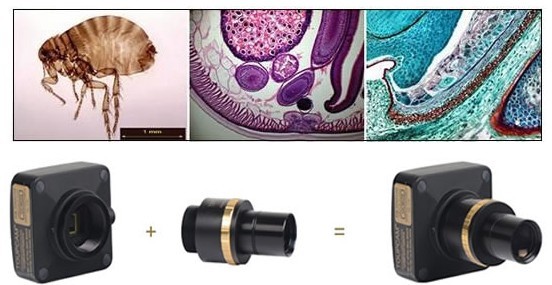

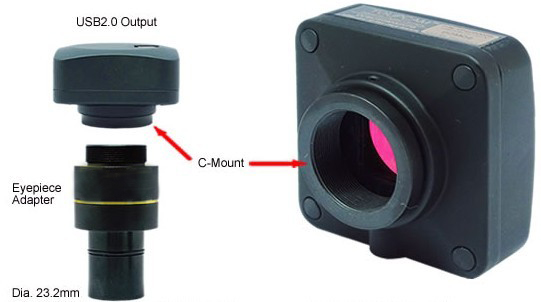

Our latest generation of cameras features upgraded electronics, streamlined software, and a compact design with smaller dimensions and reduced weight.Featuring built-in C-mount compatibility and 23mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm photo port, including microscopes, telescopes, endoscopes, and etc. The camera's optics offers max 4384*3288 pixel resolution, and the included software allows you to capture real-time, high-definition videos and stills without requiring any additional equipment.The included user-friendly software allows you to make notes, shapes, watermarks, and measurements with ease. You can analyze, present, and share images of samples and specimen by simply plugging one end into your PC's USB 2.0 port, and the other on your microscope's eye-tube or trinocular port.In addition, the newest generation of camera comes with a preassembled 0.5X reduction lens named as Eyepiece Tube, giving your PC screen the same field of view as your microscope's eyepiece. With the reduction lens in place, your camera tube is 23mm in diameter, making it compatible with pretty much any microscope's eyetube or trinocular port! We also include 2 eyepiece adapters for FREE - 30.0mm and 30.5mm.With its unique stand alone design, the MU series camera is equipped with CMOS color sensor, and comes with a high-speed USB 2.0 cord, advanced software (Windows XP/Vista/7 compatible), 4 mounting sizes (23mm, 30mm, 30.5mm, and C-mount), and instructions.
|
Pixel |
350K |
1.3M |
2.0M |
3.2M |
5.2M |
|
Senser Size |
1/4.0" CMOS |
1/3.0" CMOS |
1/2.3" CMOS |
1/2.0" CMOS |
1/2.5" CMOS |
|
Senser Size |
3.58mm(H) x 2.69mm(V), Diagonal 4.48mm |
4.60mm(H) x 3.70mm(V), Diagonal 5.9mm |
|
6.55mm(H) x 4.92mm(V), Diagonal 8.19mm |
5.70mm(H) x 4.28mm(V), Diagonal 7.13mm |
|
Senser |
Aptina CMOS (Color, Anti-blooming Protection) |
|
Output |
USB2.0 |
|
Max.Resolution |
640*480 |
1280*1024 |
1600*1200 |
2048/*1536 |
2592*1944 |
|
Pixel Size |
5.6 x 5.6um |
3.6 x 3.6μm |
2.8 x 2.8μm |
3.2 x 3.2μm |
2.2 x 2.2μm |
|
Responsivity |
1.9v/lux-sec(550nm) |
1.0v/lux-sec(550nm) |
|
1.0v/lux-sec(550nm) |
0.53v/lux-sec(550nm) |
|
Video Mode Format & Frame Rate |
640*480/30fps
320*240/80fps |
1280*1024/15fps
640*512/26fps
320*256/50fps |
1600*1200/8fps
800*600/18fps |
2048*1536/10fps
1024*768/22fps
680*510/43fps |
2592*1944/ 5fps
1280*960/18fps
640*480/60fps |
|
Imaging Area |
3.58mm(H) x 2.69mm(V) |
4.6mm(H) x 3.7mm(V) |
4.73mm(H) x 3.52mm(V) |
6.55mm(H) x 4.92mm(V) |
5.70mm(H) x 4.28mm(V) |
|
Dynamic Range |
60dB |
71dB |
71dB |
61dB |
66.5dB |
|
A/D Converter |
10-bit Parallel, 8-bit R.G.B to PC |
10-bit, 8-Bit R.G.B to PC |
|
10-bit, 8-Bit R.G.B to PC |
12-bit, 8-Bit R.G.B to PC |
|
SN Ratio |
45dB |
44dB |
|
43dB |
40.5dB |
|
Binning |
1*1, 2*2 |
1*1, 2*2, 4*4 |
|
1*1, 2*2, 3*3 |
1*1, 2*2, 4*4 |
|
Exposure |
0.11~192.46ms |
0.140~2000ms |
|
0.128~2000ms |
0.21~2000ms |
|
Pixel |
8.0M |
9.0M |
10M |
14M |
|
Senser Size |
1/2.5" CMOS |
1/2.3" CMOS |
1/2.3" CMOS |
1/2.3" CMOS |
|
Senser Size |
5.451mm(H)
4.088mm(V)
Diagonal 6.813mm |
5.825mm(H)
4.369mm(V)
Diagonal 7.281mm |
6.119mm(H)
4.589mm(V)
Diagonal 7.649mm |
6.138mm(H)
4.603mm(V)
Diagonal 7.672mm |
|
Senser |
Aptina CMOS (Color, Anti-blooming Protection) |
|
Output |
USB2.0 |
|
Max. Resolution |
3264*2448 |
3488*2616 |
3664*2748 |
4384*3288 |
|
Pixel Size |
1.67 x 1.67μm |
1.75 x 1.75μm |
1.67 x 1.67μm |
1.4 x 1.4μm |
|
Responsivity |
0.31v/lux-sec(550nm) |
0.33v/lux-sec(550nm) |
0.31v/lux-sec(550nm) |
0.724v/lux-sec(550nm) |
|
Video Mode Format& Frame Rate |
3264*2448/1.9fps
1600*1200/8fps
800*600/27fps |
3488*2616/2fps
1744*1308/9fps
872*654/27fps |
3664*2748/2fps
1832*1374/ 8fps
912*684/27fps |
4384*3288/2fps |
|
Imaging Area |
5.71mm(H) x 4.28m(V) |
6.10mm(H) x 4.58m(V) |
6.12mm(H) x 4.60m(V) |
6.13mm(H)x 4.60mm(V) |
|
Dynamic Range |
65.2dB |
62.7dB |
65.2dB |
65.3dB |
|
A/D Converter |
12-bit, 8-Bit R.G.B to PC |
|
SN Ratio |
34dB |
35.5dB |
|
Binning |
1 x 1, 2 x 2, 4 x 4 |
|
Exposure |
0.38~2000ms |
0.4~2000ms |
|
Pixel |
C800K |
C1.4MA |
C1.4MB |
C2.0M |
C3.2M |
|
Senser Size |
1/3.0" CCD |
1/2.0" CCD |
2/3.0"CCD |
1/1.8" CCD |
1/1.8" CCD |
|
Senser Size |
5.80mm(H) x 4.92mm(V), Diagonal 5.952mm |
7.60mm(H) x 6.20mm(V), Diagonal 7.959mm |
10.2mm(H) x 8.3mm(V), Diagonal 11mm |
8.50mm(H) x 6.80mm(V), Diagonal 8.923mm |
8.10mm(H) x 6.64mm(V), Diagonal 8.933mm |
|
Senser |
Aptina CCD (Color, Anti-blooming Protection) |
|
Output |
USB2.0 |
|
Max.Resolution |
1024*768 |
1360*1024 |
1360*1024 |
1600*1200 |
2048*1536 |
|
Pixel Size |
4.65 x 4.65um |
4.65 x 4.65μm |
6.45 x 6.45μm |
4.4 x 4.4μm |
3.45 x 3.45μm |
|
Video Mode Format & Frame Rate |
1024*768
/16fps |
1360*1024
/12fps |
1360*1024
/15fps |
1600*1200
/10fps |
2048*1536
/6fps |
|
Dynamic Range |
70dB |
|
G Sensitivity |
400mV with 1/30s Accumulation
|
1240mV with 1/30s Accumulation |
420mV with 1/30s Accumulation |
455mV with 1/30s Accumulation |
|
A/D Converter |
12-bit Parallel, 8-bit R.G.B to PC |
|
SN Ratio |
62dB |
|
Binning |
1 x 1 |
1 x 1,1 x 2 |
|
Exposure |
Normal: 0.16~62.00ms
Long Exposure: 62.98ms~4mins
|
Normal: 0.22~119.37ms
Long Exposure: 119.37ms~4mins
|
Normal: 0.126~66.695ms
Long Exposure: 66.695ms~4mins
|
Normal: 0.17~100.00ms
Long Exposure: 100.00ms~4mins
|
Normal: 0.18~77.81ms @2048 x 1536, 0.18~23.10ms @640 x 480.
Long Exposure: 77.81ms~4mins |
|
General Specification
|
|
Scan Mode |
Progressive |
|
Spectral Range |
400-650nm (with IR-Filter) 380-1000nm (w/o IR-Filter) |
|
Exposure |
Electronic Rolling Snap(ERS),ROI Auto & Manual, |
|
White balance |
One Push ROI White Balance/ Manual Temp-Tint Adjustment |
|
Driver Interfaces |
DirectShow , Twain |
|
Operating System |
Microsoft Windows XP / Vista / 7 (32 & 64 bit)
CPU: Intel Pentium 4, 2.6G or above
RAM: 512 MB
HDD: 10 GB
USB: USB2.0 interface |
|
Operating Temp. |
-10~60¡æ |
|
Operating Humidity |
30%~80% |
|
Power Supply |
DC 5V from PC USB port |
|
Package Box |
140mmx140mmx80mm, 0.5Kgs |
|
Color Rendering Technique |
Ultra FineTM Color Engine |
|
Capture Mode |
Still Picture and Video |
|
Remarks |
Actual frame rates on your computer depend on the hardware and operating system used |
|
Software Features
|
|
Main Functions |
Viewing live images; Streaming & recording live videos; Capturing & saving still images; Making measurements |
|
Processing |
-Edits images in a similar manner to PhotoShop
-Captures images, records videos and saves in JPG, TIF, GIF, PSD, WMF, and BMP formats
-Add layers, watermarks, mosaics, tiles
-Adjust color balance, exposure, saturation, contrast, orientation
-Change resolution, histogram, granulation, diffusion
-Transform images via edge detection, digital image warping |
|
Measurement |
Measures length and angle; rectangular, elliptical and irregular areas; single, parallel and perpendicular lines |
|
Notation |
Adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors |
|
Calibration |
Makes measurements in microns, millimeters, centimeters, inches, feet, and etc. at all magnification settings with desired tolerances |
|
Driver Characteristics
|
|
White Balance |
ROI auto white balance/temp-tint manual white balance |
|
Black Level Calibration |
Adaptive black level calibration |
|
Stuck or Hot Pixel |
Hardware remove technique |
|
USB Controller Compatibility |
Automatic detection of adaptation |
|
Interfaces Supported |
DirectShow/TWAIN |
|
Operating System |
Microsoft Windows XP / Vista / 7 (32 & 64 bit) |
Package List
--One Digital Camera Eyepiece Type
--One Eyepiece Tube, With Built-in 0.5x Reducing Lens
--Two Ring Adaptors: Dia.30mm, Dia.30.5mm
--One 6' (1.8m) USB2.0 High-Speed Cable
--One CD with Software and User's Instructions
|
